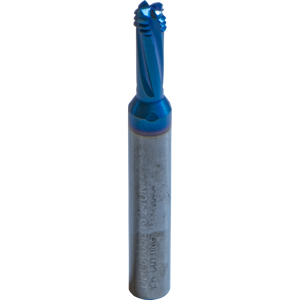

DMTH 06032 C11 0.7 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.028"/0.7mm, Chamf Dep:0.008"/0.2mm, Cut Dia:0.124"/3.15mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.46"/11.6mm, OAL:2.3"/58mm, Pitch:00.70mm, Shank Dia:6.0mm, Thread Dep:2.5xD1, Thread:ISO, Thread Std:M4

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 0604 C14 0.8 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.031"/0.8mm, Chamf Dep:0.012"/0.3mm, Cut Dia:0.157"/4.0mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.57"/14.4mm, OAL:2.3"/58mm, Pitch:00.80mm, Shank Dia:6.0mm, Thread Dep:2.5xD1, Thread:ISO, Thread Std:M5

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 08047 C14 1.0 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.039"/1.0mm, Chamf Dep:0.016"/0.4mm, Cut Dia:0.185"/4.7mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.57"/14.4mm, OAL:2.5"/64mm, Pitch:01.00mm, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:ISO, Thread Std:M6,M7,M8,M9

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 08048 C15 20 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.049"/1.25mm, Chamf Dep:0.016"/0.40mm, Cut Dia:0.189"/4.8mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.61"/15.6mm, OAL:2.5"/64mm, Pitch:20.00 TPI, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(3/4)x6,(7/8)x6

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 0805 C14 28 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.035"/0.90mm, Chamf Dep:0.016"/0.40mm, Cut Dia:0.197"/5.0mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.59"/14.9mm, OAL:2.5"/64mm, Pitch:28.00 TPI, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(1/4)-(3/8)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

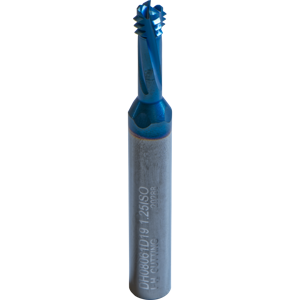

DMTH 08061 D19 1.25 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.049"/1.25mm, Chamf Dep:0.02"/0.5mm, Cut Dia:0.24"/6.1mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.75"/19.0mm, OAL:2.5"/64mm, Pitch:01.25mm, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:ISO, Thread Std:M10,M12,M8,M9

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 08065 D18 24 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.041"/1.05mm, Chamf Dep:0.020"/0.50mm, Cut Dia:0.256"/6.5mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.73"/18.5mm, OAL:2.5"/64mm, Pitch:24.00 TPI, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(5/16),(1/2)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 08067 C22 16 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.063"/1.60mm, Chamf Dep:0.020"/0.50mm, Cut Dia:0.264"/6.7mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.9"/22.8mm, OAL:2.5"/64mm, Pitch:16.00 TPI, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(3/8)-(1/2)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

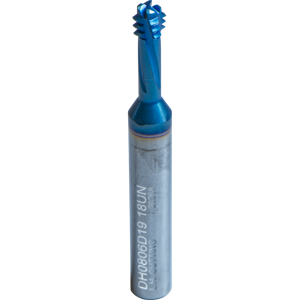

DMTH 0806 D19 18 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.055"/1.40mm, Chamf Dep:0.020"/0.50mm, Cut Dia:0.236"/6.0mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.76"/19.2mm, OAL:2.5"/64mm, Pitch:18.00 TPI, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(5/16)-(7/16)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 08078 D23 1.5 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.059"/1.5mm, Chamf Dep:0.024"/0.6mm, Cut Dia:0.307"/7.8mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:0.93"/23.6mm, OAL:2.5"/64mm, Pitch:01.50mm, Shank Dia:8.0mm, Thread Dep:2.0xD1, Thread:ISO, Thread Std:M10,M13-M15

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 10092 C30 13 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.079"/2.00mm, Chamf Dep:0.024"/0.60mm, Cut Dia:0.362"/9.2mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:1.18"/30.0mm, OAL:2.9"/73mm, Pitch:13.00 TPI, Shank Dia:10.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(1/2)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 1009 D28 1.75 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.069"/1.75mm, Chamf Dep:0.024"/0.6mm, Cut Dia:0.354"/9.0mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:1.11"/28.1mm, OAL:2.9"/73mm, Pitch:01.75mm, Shank Dia:10.0mm, Thread Dep:2.0xD1, Thread:ISO, Thread Std:M12

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

DMTH 12114 C37 11 UN MT11 Hill Inventory: 0 Customer Account Required

#Flutes:3, Bottom Rel:0.091"/2.30mm, Chamf Dep:0.024"/0.60mm, Cut Dia:0.449"/11.4mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:1.46"/37.0mm, OAL:3.3"/84mm, Pitch:11.00 TPI, Shank Dia:12.0mm, Thread Dep:2.0xD1, Thread:UN, Thread Std:(5/8)

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

+ Quick Shop

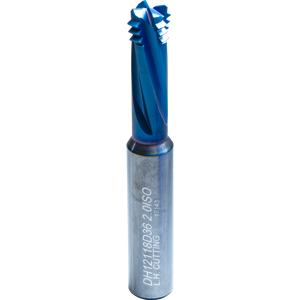

DMTH 12118 D36 2.0 ISO MT11 Hill Inventory: 0 Customer Account Required

#Flutes:4, Bottom Rel:0.079"/2.0mm, Chamf Dep:0.024"/0.6mm, Cut Dia:0.465"/11.8mm, Grade:MT11, w/o Cool, Incl Ang:45°, IN-RH/LH, Matl:Carbide, Neck L:1.44"/36.6mm, OAL:3.3"/84mm, Pitch:02.00mm, Shank Dia:12.0mm, Thread Dep:2.0xD1, Thread:ISO, Thread Std:M16,M17-M23
