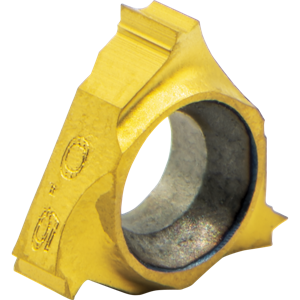

06 IR 0.5 ISO BXC

Factory Stock

Hill Inventory: 0 To view pricing and complete purchase you must login to an account.

CentrLn to Cut Edge:0.02"/0.9mm, Cut Edge to Matl:0.04"/0.5mm, IC:(5/32)", IN-RH, Insert Size:6mm, Matl:Carbide, Pitch:00.50mm, Thread Form:ISO

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Carmex Laydown Threading Inserts

Type: Thread Turning Tools
