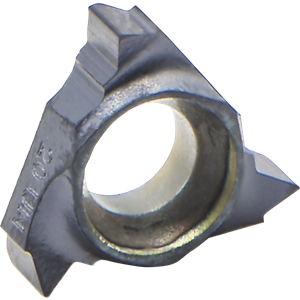

06 IR 20 UN BMA

Factory Stock

Hill Inventory: 0 To view pricing and complete purchase you must login to an account.

#Edges:3, CentrLn to Cut Edge:0.02"/0.6mm, Cut Edge to Matl:0.02"/0.6mm, IC:(5/32)", IN-RH, Insert Size:6mm, Matl:Carbide, Thread Form:UN

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Carmex Laydown Threading Inserts

Type: Thread Turning Tools
