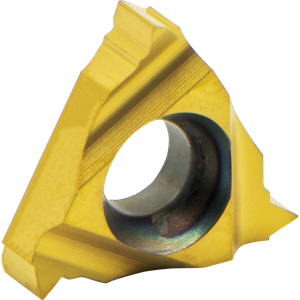

08 IL 1.0 ISO BXC

Factory Stock

Hill Inventory: 0 To view pricing and complete purchase you must login to an account.

CentrLn to Cut Edge:0.02"/0.6mm, Cut Edge to Matl:0.02"/0.6mm, IC:(3/16)", IN-LH, Insert Size:8mm, Matl:Carbide, Pitch:01.00mm, Thread Form:ISO

Click Here To View Carmex's Metric Catalogs

Click Here To View Carmex's Inch Catalogs

Collections: Carmex Laydown Threading Inserts

Type: Thread Turning Tools
